You face the same decision again and again on sites: keep it simple with surface-mounted gear or drop a unit in the hole. In many conditions, self priming dewatering pumps give you faster setup, easier service, and a wider operating window with air-laden, dirty water. When suction lift height, access, and solids make submersibles painful, a surface self-primer can outperform despite the atmospheric lift limit. The key is knowing how they prime, where they shine, and how to size them correctly.
What Are Self-Priming Dewatering Pumps (Working Principle)
Self-primers are centrifugal pumps built with an air-handling loop in the casing. You charge the casing with liquid once. On startup, the impeller accelerates this resident liquid, creating low pressure at the eye. That pressure drop draws air and water up the suction line.
Air and liquid enter a separation chamber. The air/water separator lets air vent through the discharge path while liquid falls back through a recirculation port to the impeller eye, repeating the cycle. Each pass strips more air until the suction line runs full and the pump transitions to standard centrifugal operation.
Key internal elements:
- Semi-open or vortex impeller for free passage of grit and fibers
- Volute casing with a gas–liquid separation chamber
- Recirculation holes feeding liquid back to the eye
- Flap/check valves to prevent backflow and hold a water charge after shutdown
Two practical notes matter on site:
- Priming time increases with suction pipe volume and with suction lift height. Short, airtight suction lines prime fastest.
- Many portable units add a venturi or auto-prime vacuum system. These evacuate large air volumes quickly, reduce priming time, and improve reliability on long or rough suction runs.
Once primed, you get normal head vs flow performance from the pump curve, with a slight efficiency penalty compared to a pure end-suction centrifugal due to the larger casing and recirculation features.

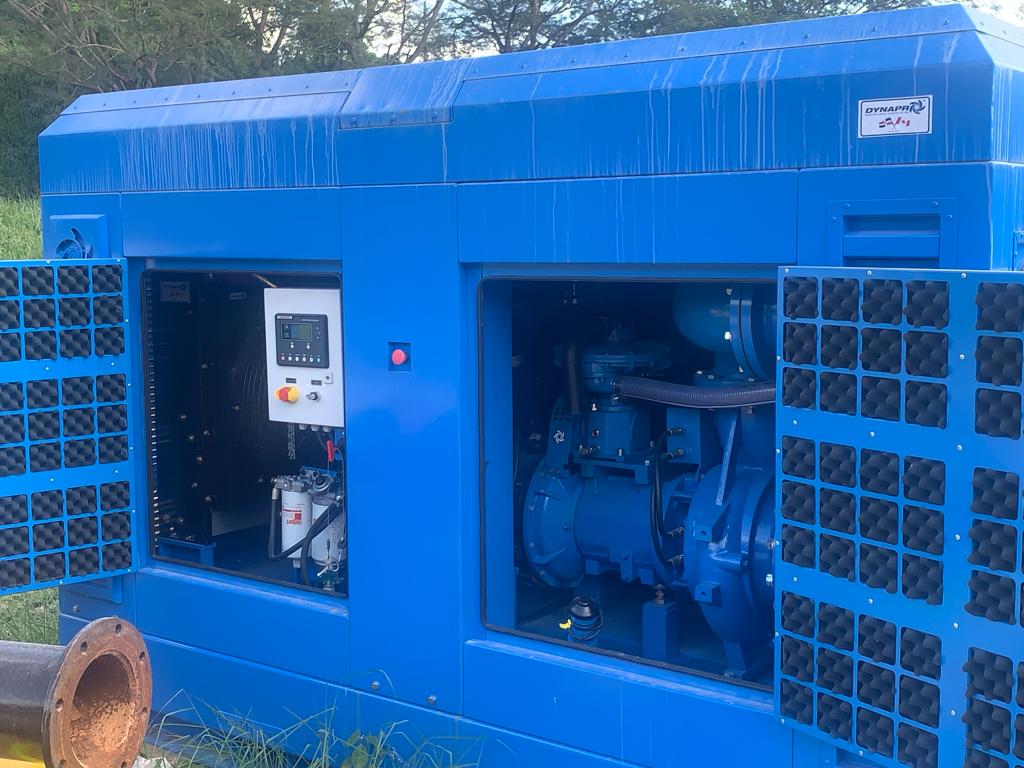

self priming dewatering pumps
When you deal with air, grit, and intermittent inflows, self-primers are hard to beat. You keep motors dry, you work above the fluid, and you can re-prime after gulping air without diving into a pit.
Where they deliver:
- Dirty water with sand, gravel, rags, or organics
- Intermittent inflow where the sump draws down and entrains air
- Quick-response flood or bypass deployments with trailer units
- Hazardous or corrosive fluids where you prefer to keep the driver out of the liquid
- Wellpoint systems where vacuum-assisted priming supports drawdown on a header
Critical features to look for:
- Air-handling rate sufficient for your suction volume
- Solids passage that matches expected debris
- Foot valve or a reliable internal flap valve to hold a water charge
- Strainer sized to protect the impeller without choking flow
- Sound-attenuated canopy if you must keep noise low near residences
A short sizing section later will help you lock these in.
Self Priming Dewatering Pumps vs Submersibles: When to Choose Each
Both pump types are proven. Your site constraints and risk profile tip the balance.
- Choose a self-primer when:
- You need above-ground accessibility for fast service with no confined-space entry.
- The liquid carries high solids or variable solids % that jam submersible channels.
- Power is limited or temporary and diesel trailer sets make logistics easier.
- You must re-prime after gulping air or running intermittent bypass line flows.
- You need to tie into a wellpoint header and evacuate large air volumes on start.
- Choose a submersible when:
- Suction lift would exceed 7 to 8 meters or your NPSHa margin is thin.
- Noise must be minimal and a submerged unit is preferable.
- You have permanent infrastructure: rails, hoist, and an electrical feed.
- You need higher heads than typical self-primers can deliver efficiently.
Quick selector table
| Situation | Better Choice | Why |
|---|---|---|
| Shallow sump, debris, frequent start-stop | Self-primer | Handles air and trash, easy re-priming, fast service |
| Deep pit, quiet neighborhood, steady duty | Submersible | No suction limit, low noise, high duty cycle |
| Emergency flood pumping across multiple sites | Self-primer | Trailer mobility, dry motor, quick hookups |
| High static head with clean water | Submersible | No suction constraint, broad high-head options |
| Sewage bypass with wipes and rags | Self-primer (trash design) | Semi-open/vortex impellers and easy de-ragging |
If you are near the suction limit or the suction run is long and leaky, submersibles remove that variable. If uptime with easy maintenance is paramount and solids are ugly, self-primers pay back quickly.
Sizing & Selection Checklist
Lock your selection with disciplined steps. Capture these in your spec sheet and calculation notes.
- Duty point
- Define the design flow and any peak flow. Note expected turndown and duty cycle.
- TDH
- Sum static suction lift, static discharge head, suction losses, discharge losses. Keep velocities moderate, especially on suction.
- Head vs flow: choose a pump curve with your duty point near the best efficiency point, not at shutoff or extreme runout.
- Suction lift and NPSHa
- Keep static suction lift at or below 6 to 7 m whenever possible to retain margin.
- NPSHa = atmospheric head ± static level head − suction friction. Ensure NPSHa exceeds NPSHr at your duty point with a safety margin.
- Air-handling rate and priming time
- Estimate the suction-line air volume and target a priming time suitable for your site. A vacuum primer or venturi auto-prime cuts time and reduces risk of overheating during dry-run priming.
- Solids handling
- Specify free passage and solids %. Semi-open or vortex impellers pass larger debris but trade a bit of efficiency. Match strainer opening to solid sizing.
- Hoses, fittings, and losses
- Use reinforced suction hose rated for full vacuum. Minimize elbows and high points. Add a foot valve or internal check and confirm it seals.
- Account for minor losses from bends, valves, reducers, and couplings.
- Materials and seals
- Pick casing, wear components, and seals for abrasiveness and chemistry. Consider hardened wear rings and sacrificial wear plates for slurry-laden water.
- Driver and fuel efficiency
- Size engine or motor with margin at site conditions. If diesel, review fuel curves at your duty point and consider auto-throttle strategies. If electric, consider VFD for flow control and lower noise.
- Noise
- If noise is a constraint, specify a sound-attenuated enclosure and resilient mounts. Plan placement and barriers.
- Controls and accessories
- Include vacuum/pressure gauges, a priming port, drain port, and a bypass line or recirculation loop for startup bleeding and cooling during low-flow periods.
- For wellpoint systems, check compatibility with the header, air bleeds, and the vacuum assist device.
A compact checklist table you can use in a site file
| Item | Target/Decision | Notes |
|---|---|---|
| Flow and TDH | Duty point near BEP | Include 10 to 20% head margin |
| Suction lift height | ≤ 6–7 m preferred | Respect barometric limit; verify NPSHa |
| NPSHa vs NPSHr | NPSHa > NPSHr + margin | Cavitation margin prevents overheating |
| Air-handling | Adequate for line volume | Vacuum assist if long suction or wellpoints |
| Solids | Passage ≥ max particle size | State solids % and strainer opening |
| Hose/fittings | Minimize losses and high points | Vacuum-rated suction hose only |
| Driver | kW/HP at site altitude and temp | Fuel strategy and VFD where applicable |
| Noise | dB limit met | Enclosure, isolation, placement |
| Materials | Wear and corrosion resistant | Seal type matched to fluid and temp |
Operation & Maintenance
Startup
- Pre-fill the casing if the model requires it. Confirm correct rotation.
- Open suction valve, crack discharge to let air escape. Check gauges as the vacuum builds and discharge pressure rises.
- Watch temperature during priming. If priming takes longer than expected, stop and diagnose before heat builds.
Re-priming
- If the sump burps air, keep the discharge cracked to bleed. A foot valve or internal flap valve helps retain water in the casing.
- Use the priming port or engage the vacuum primer to clear the line quickly. Verify the check valve seals so air does not slip back on shutdown.
Routine care
- Inspect the strainer often. A blinded strainer kills NPSHa and causes cavitation.
- Track suction vacuum and discharge pressure. Drift from baseline often points to wear ring growth, impeller wear, or partially blocked suction.
- Maintain lubrication, alignment, and mount integrity. Vibration shortens seal and bearing life dramatically.
Troubleshooting quick list
- Air leaks or loss of prime: Tighten all suction joints, replace gaskets, pressure-test the suction hose, confirm the check valve is sealing, and verify the recirculation port is not silted.
- Not taking prime: Clear debris at the impeller eye, slightly open discharge to vent air, shorten or straighten the suction run, or use the vacuum assist. If suction lift is excessive, relocate the pump lower.
- Overheating or gravel noise: Reduce suction lift, slow flow slightly to lower NPSHr, refill a hot casing with cool liquid after shutdown, and restore proper impeller-to-wear surface clearance.
- Excessive vibration: Check alignment, mounts, and coupling. Inspect for bent shaft or damaged impeller. Verify foundation and isolation pads.
Recommended spares on-site
- Mechanical seal kit, wear rings, impeller, bearings, O-rings/gaskets, coupling element
- For vacuum-assisted models: primer diaphragm or piston kit, flap valves, and check valve internals
- Suction and discharge hose sections and extra camlocks with gaskets
FAQ
Q1: How long does priming take?
A: With a short, tight suction and modest lift, you often see flow in under 30 seconds. Long or high lifts can take 1 to 2 minutes, faster with vacuum assist.
Q2: What suction lift can I rely on?
A: Treat 6 to 7 meters as a practical design ceiling to keep NPSHa margin. Near 8 meters, priming time and cavitation risk increase sharply.
Q3: When do self-primers beat submersibles?
A: When you need high solids tolerance, fast re-priming with air present, easy above-ground maintenance, mobility for multiple sites, or integration with wellpoint headers and bypass lines.
